Description

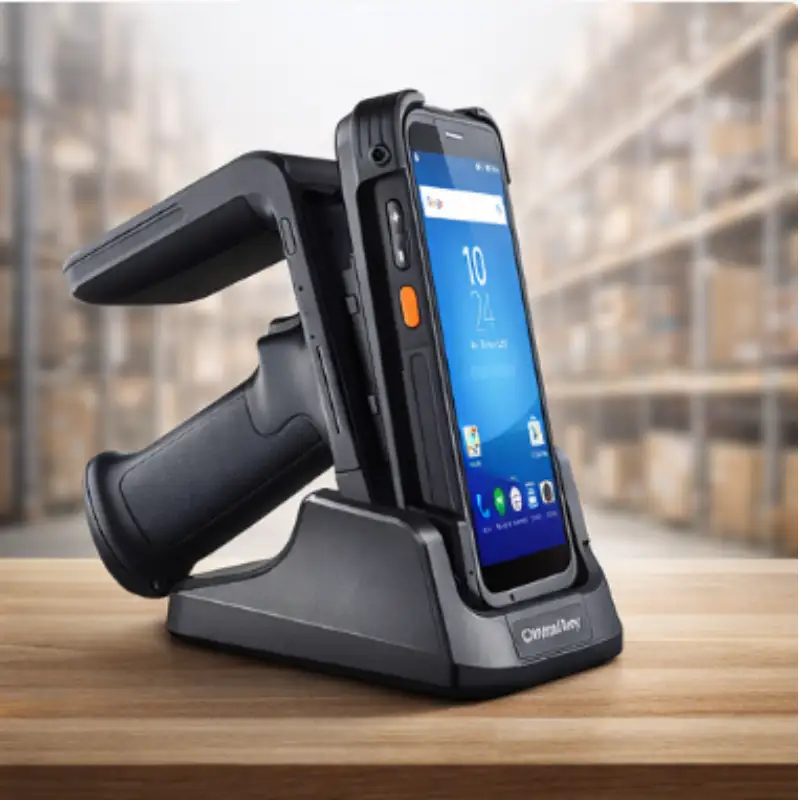

R6 UHF RFID Sled Reader
Communication
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Physical Characteristics
Dimensions:
151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in.
Weight:
RFID configuration: 438 g (including battery)
RFID + Engine configuration: 446 g (including battery)
Power:
Battery specification: 5200 mAh removable battery
Standby: over 70 hours (keeping bluetooth connected)
Continuous use: up to 2.5 hours (UHF reading: 400 tags)
Charging time:4-5 hours (with standard adaptor and USB cable)
Buzzer: Support
Interfaces: USB 3.0 Type-C
Indicator: LED Power, Work, Bluetooth
Size of adapted: phone Sled Reader: Width 68~80 mm, thickness ≤ 22 mm
Others: Based on phone case or holder
Phone: Others Based on phone case or holder
Product Material: ABS, Aluminum Alloy
Colour: Black
Developing Environment
SDK: Android / iOS
Language: Java / Objective-C
Tool: Android Studio / Xcode
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: This function is optional
User Environment
Operating Temp: -4℉~+122℉ / -20℃~+50℃
Storage Temp: -40℉~+158℉ / -40℃~+70℃
Humidity: 5%RH – 95%RH non condensing
Drop Specification: Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP54 per IEC sealing specifications
ESD: ±15 KV air discharge, ±8 KV conductive discharge
UHF RFID
Engine: Based on Impinj E Series chips
Frequency: FCC: 902 MHz – 928 MHz; 36 dBm (EIRP)
EU: 865.6 MHz – 867.6 MHz; 35 dBm(EIRP)
CH: 920.5 MHz- 924.5 MHz; 35 dBm (EIRP)
Impinj Gen2X: Supported
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Circular Polarized Antenna
Output Power: 1-30, step 1dB
Fastest Read Rate: 1000+ tags/sec
Max Read Range: >26m (Impinj M830 tag)
Note: Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
